vtEngine Class Reference

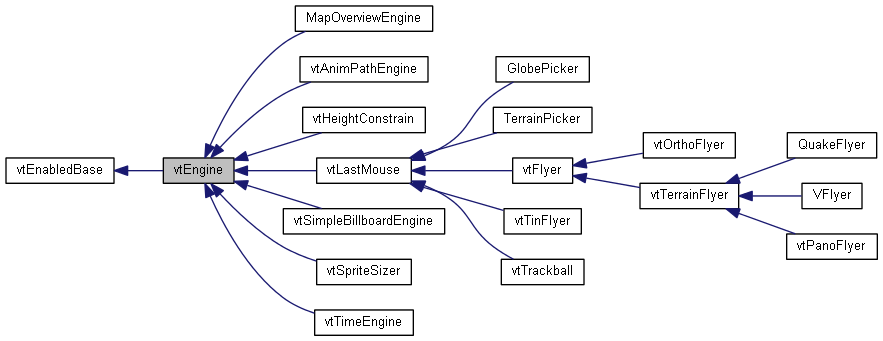

Inheritance diagram for vtEngine:

List of all members.

Public Member Functions
osg::Referenced *	GetTarget (unsigned int which=0)
void	AddTarget (osg::Referenced *ptr)
void	SetTarget (osg::Referenced *ptr)
void	RemoveTarget (osg::Referenced *ptr)
unsigned int	NumTargets ()
	Return the number of targets for this engine.
virtual void	OnMouse (vtMouseEvent &event)
	Virtual handler, to catch mouse events, can be overridden by your engine class.
virtual void	OnKey (int key, int flags)
	Virtual handler, to catch keyboard events, can be overridden by your engine class.
virtual void	OnWindowSize (int width, int height)
	Virtual handler, to catch resize events, can be overridden by your engine class.
virtual void	Eval ()

---

Detailed Description

The vtEngine class represents an Engine, which is a convenient way to encapsulate an application behavior which occurs every frame. An Engine typically has a target, which is another object which it affects. The Engine's method Eval() is called each frame, at which point it can do whatever simulation or computation it desires, and then update its target.

For example, you may have a node in your scene graph which represents a fish. You could then create a Engine class (e.g. FishEngine, subclass of vtEngine) which simulates the behavior of a fish. For each fish you create, you would also create a FishEngine and set the Engine's target to be the fish.

---

Member Function Documentation

void vtEngine::AddTarget

(

osg::Referenced *

ptr

)

[inline]

Adds a target to the engine.

void vtEngine::Eval

(

)

[virtual]

Virtual handler, will be called every frame to do the work of the engine. You must override this if you want your engine to be useful.

Reimplemented in vtAnimPathEngine, vtSimpleBillboardEngine, vtIntersectionEngine, MapOverviewEngine, vtFlyer, vtOrthoFlyer, vtTerrainFlyer, vtPanoFlyer, vtTinFlyer, VFlyer, QuakeFlyer, vtHeightConstrain, vtTrackball, TerrainPicker, GlobePicker, and vtTimeEngine.

osg::Referenced * vtEngine::GetTarget

(

unsigned int

which = 0

)

Get a target from the engine. Most engines will have only a single target.

Parameters:

which

The number of the target (default 0).

void vtEngine::RemoveTarget

(

osg::Referenced *

ptr

)

Removes a target from the engine.

void vtEngine::SetTarget

(

osg::Referenced *

ptr

)

[inline]

Sets a single target for this engine (for backward compatibility.)
